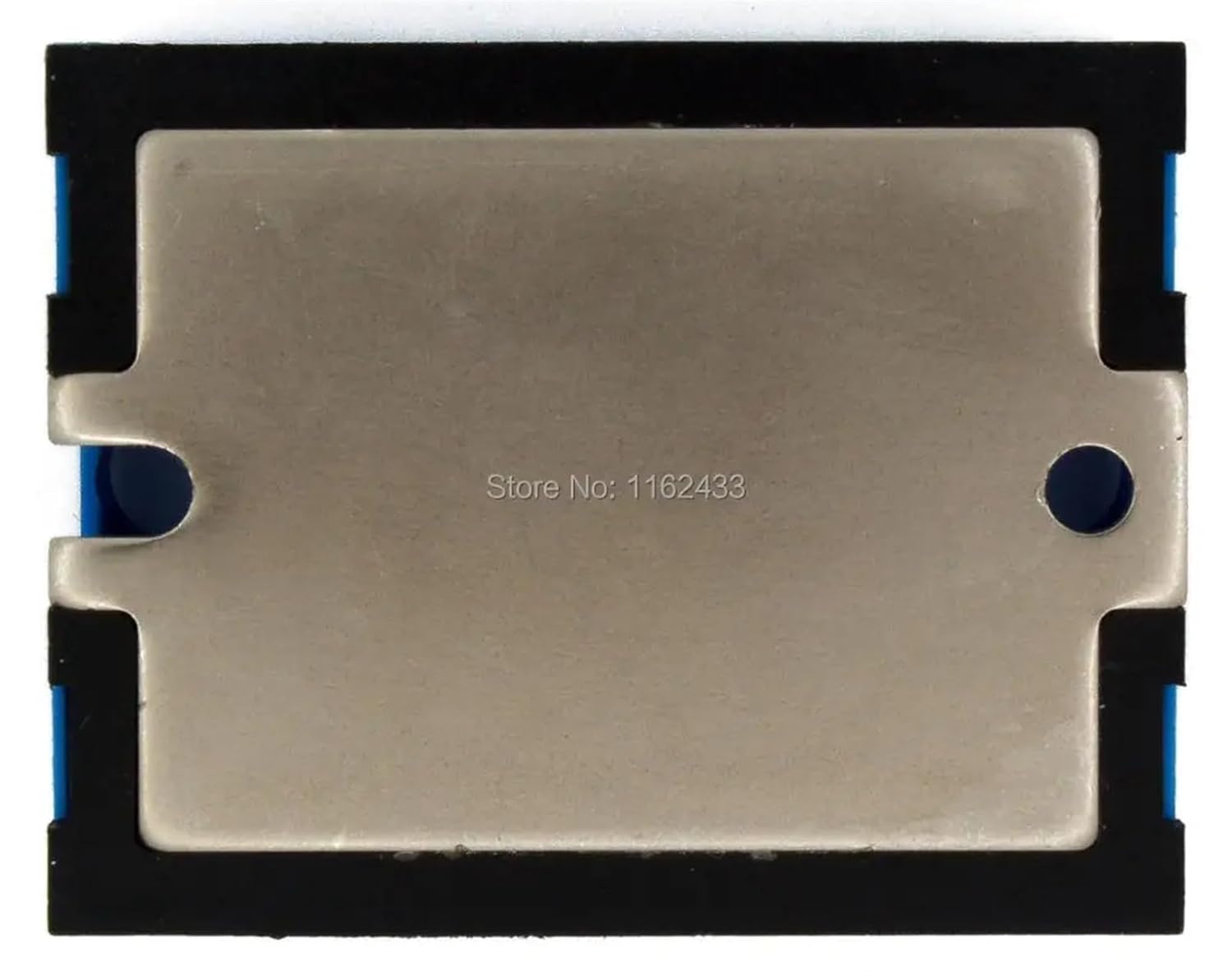

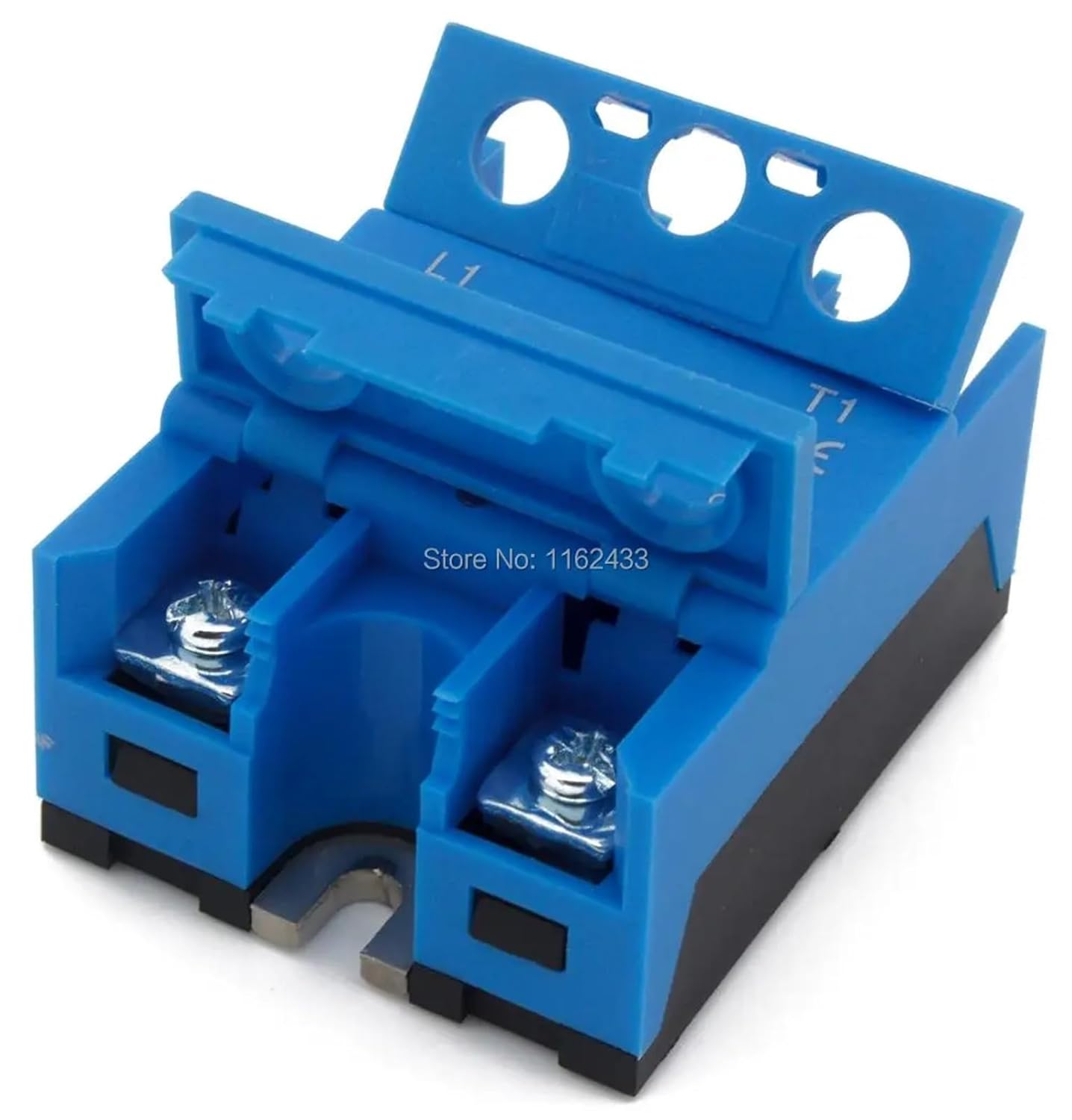

ASH-B-100AA Single Phase AC to 100A 660V Solid State Relay 100AA SSR

relayRelayASH-B-AA series single phase AC to AC solid state relayModel number and parametersModel numberLoad currentLoad voltageRelated productASH-B-40AA40A24-660VacOrderASH-B-60AA60A24-660VacOrderASH-B-80AA80A24-660VacOrderASH-B-100AA100A24-660VacVisiting...ASH-B-120AA120A24-660VacOrderSuitable maximum load powerLoad current (A)406080100120220V resistive load power (KW)4.46.68.81113.2220V inductive load power(KW)1.31.92.63.23.8GeneralModel numberASH-B-AA seriesRated input control voltage50-280VAC 50/60HzRated input control current12mA maxPick-up or drop-out time10ms maxControl typeZero crossing detectionInput-ON indicationLEDOn-state leakage current2mA maxOn-state voltage drop at Imax1.5VacMatched heat sink40A: FHSI01-50 60A: FHSI02-50 120A: FHSI03-100Matchedthermal greaseHZ-KS101Dielectric strength2500VAC 50/60Hz for 1 minuteInsulation resistance1000 M min at 500 VDCExternal dimensions58x44.8x29mmTerminalsScrewOperational temperature-30 to 85°COperational humidity95% max no condensationAlias nameASH-B-AA series single phase AC to AC solid state relayAdvantage1. Security and protection integrated design anti-parallel thyristor chips with the features of big operating current resist to surge and high reliability.2. ASH-B Series 40A-150A load terminal voltage can be up to 660VAC resistive load actual current can be up to 80% -90% of the rated current.3. Unique strength copper power terminals with more stability.4. Full copper plate compared with a variety of aluminum plate and zinc plate improves the product performance of pressure drop and heat di
